Automatic Sunflower Seeds& vegetable seeds detergent powder Vertical Packaging Machine for small business
Technical Specifications
| Model | TCLB-420 | TCLB-520 | TCLB-620 | TCLB-720 | TCLB-820 |
| Film width | Max.420mm | Max.520mm | Max.620mm | Max.720mm | Max.820 |
| Bag length | 80-300mm | 80-350mm | 150-350mm | 100-450mm | 100-400mm |
| Bag width | 60-200mm | 80-250mm | 200-350mm | 100-350mm | 180-400mm |
| Film roll diameter | Max.320mm | Max.320mm | Max.400mm | Max.400MM | Max.400mm |
| Speed/Capacity | 5-60bag/min | 10-50bag/min | 5-50bag/min | 10-40bag/min | 5-30bag/min |
| Measure range | 150-1500ml | 150-2000ml | 150-4000ml | 150-4000ml | 6000ml |
| Film thinckness | 0.04-.08mm | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm |
| Power | 220V,50/60HZ, 2.2KVA | 220V,50/60HZ, 2.2KVA | 220V,50/60HZ, 2.2KVA | 220V,50/60HZ, 2.2KVA | 220V,50/60HZ, 2.2KVA |
Application
Suitable for high precision measurment and fragile packaging bulk objects, such as puffed food, crispy rice, fruit cold, sweets, pistachio apple slices, dumplings, rice balls, chocolate, hardware items, medicines, etc.
Feature:
1.Easy operation
2.Durable with compact structure
3.Save energy and manpower saving
4.Humanize design
Specification:
1. The new design, beautiful appearance, the structure is more reasonable, more advanced technology.

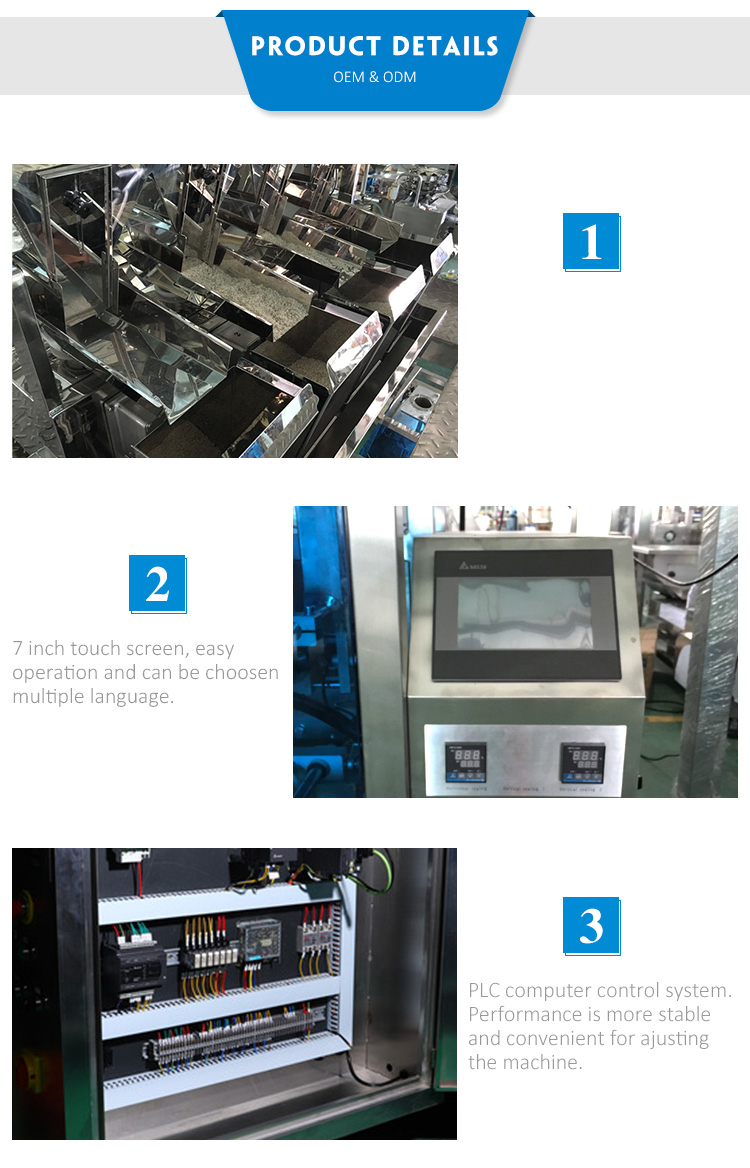

2. Imported PLC computer control system, color touch screen, easy to operate, intuitive and efficient.

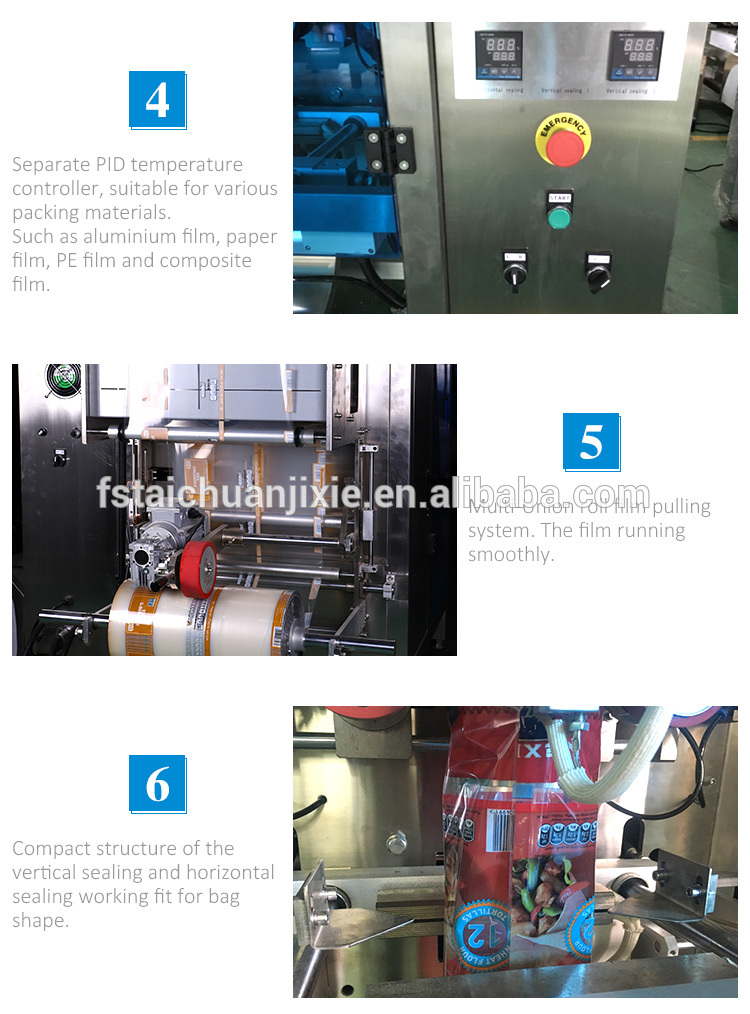

3. The imported servo flim transport system, imported color code sensor, accurate positioning and the machine performance is remarkable, the packing is beautiful.
4. A avriety of automatic alarming protective function, maximum limit to reduce wear and tear.
5. Pocket diversification, can provide customers with pillow bags, Angle of bag, hanging hole bag, even bag, etc.
6. Automatic feeding, metering, bag filling, date printing and product output of all process;
7. High measuring accuracy, high efficiency, no broken material.
Technical Specifications:
| type | TCLB-420 | TCLB-520 | TCLB750 | TCLB820 |
| Bag Length | 80-300mm | 80-350mm | 100-450mm | 100-400mm |
| Bag Weight | 60-200mm | 80-250mm | 100-350mm | 180-400mm |
| Speed | 5-60bag/min | 10-50bag/min | 10-40min | 5-30min |
| Measuring range | 150-1500ml | 150-2000ml | 150-4000ml | 6000ml |
Suitable for high precision measurment and fragile packaging bulk objects, such as puffed food, crispy rice, fruit cold, sweets, pistachio apple slices, dumplings, rice balls, chocolate, hardware items, medicines, etc.

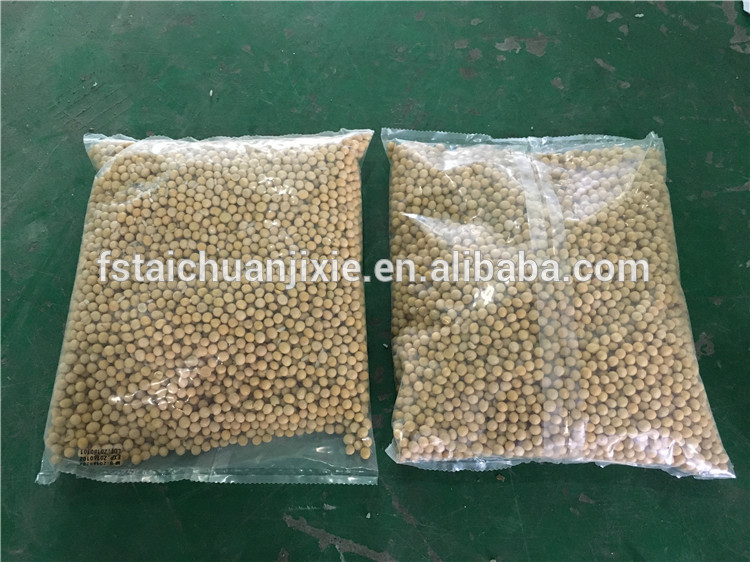

Package Sample:
Back sealing type
Alphascope bags four size sealing
Unit composition
a. Z type Hoist
Transfer the material to the weigher and drop the material evenly and smooth to the weight
b. TCLB series host
TCLB-420/TCLB-520/TCLB-620/TCLB-820
c. Electric weighter (4 head, 10 head, 14 head)
Full automatic with accuracy
After weighing, it will release the material than to bag
d. Finished product conveyor
To transport the packed product to certain height and easy for collection.
Details:

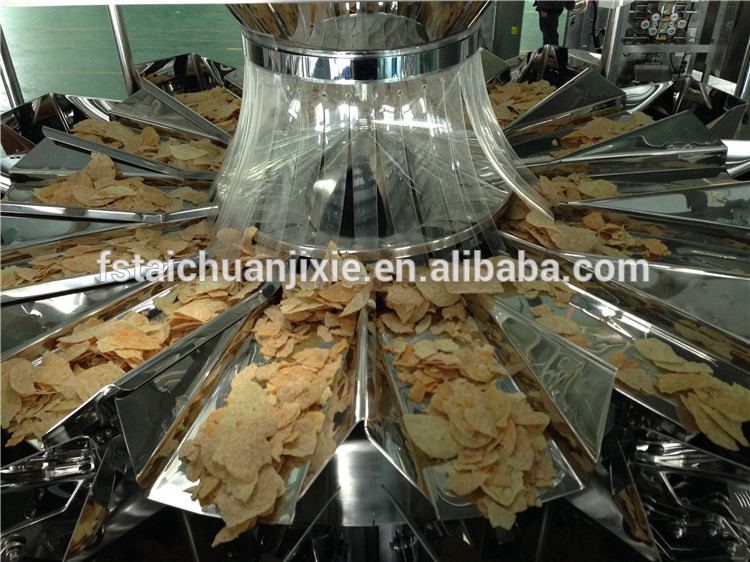

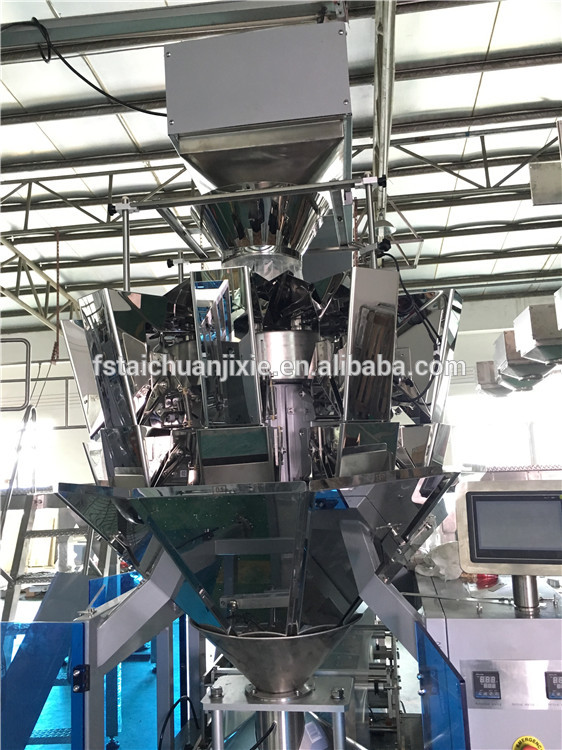

Electronic weighing

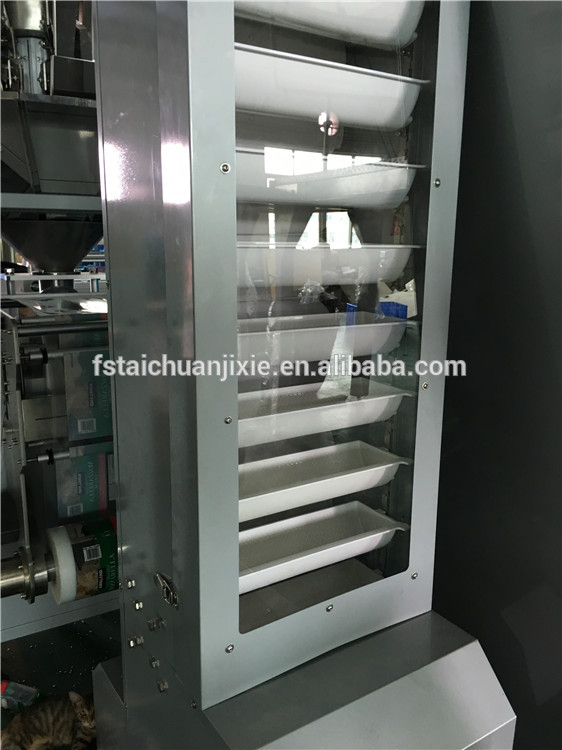

Z type feeding transport bucket

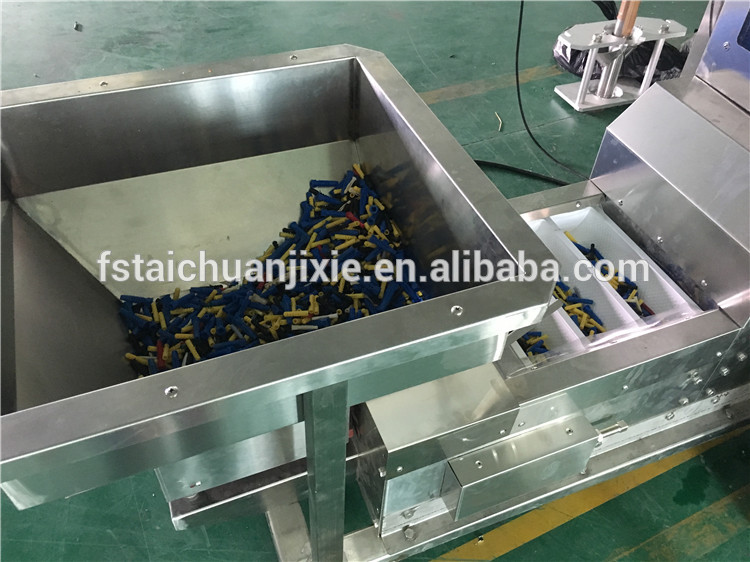

Z type feeding hopper
Optional device:
1.Double membrane instituions
2.Angle of institution
3.Automatic correction
4.Punching device for hanging
5.Even a bag of device
6.Nitrogen filling device which protect the material from Crush collision

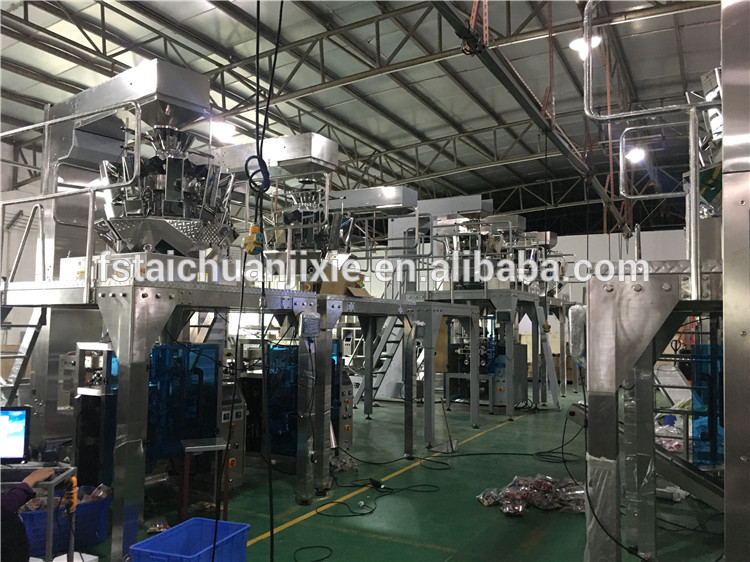

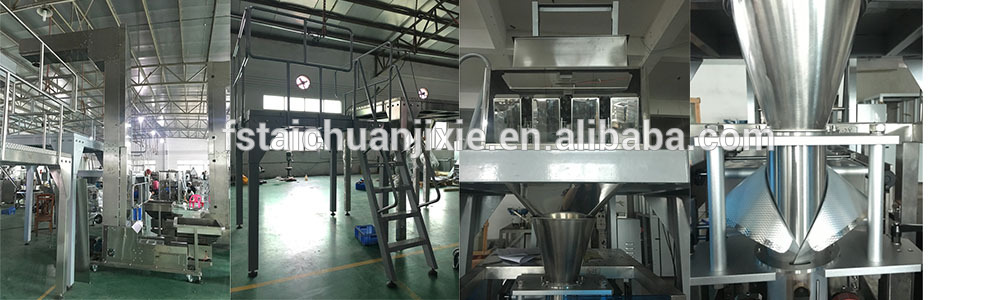

Factory pictures
www.fstcpack-com.ecer.com
Ling Lu :WhatsApp/Viber/WeChat:008615018600683v Email:linglu912@gmail.com.
Automatic Vertical high speed packing machine,packaging machine:Fully-automatically complete all the process from Feeding, Weighting ,Filling, Bag–making , Sealing, Cutting ,Packing, Date-printing to finished products outputting.
Application:
This vertical packaging machine(packing machine ) be used for packing grain material in field of food, medicine and chemical.
Whatsapp/Wechat:0086 15018600683
QQ:365059000
Email:autopack03@gmail.com /linglu912@gmail.com
